GFCI Outlet Installation in McKinney, TX — Protect Your Home With Licensed Electricians

A GFCI outlet has two sets of terminals — line and load. The line terminals connect to the incoming power. The load terminals protect every outlet downstream on the same circuit. If these terminals are reversed, the GFCI itself may work, but every outlet after it loses ground-fault protection.

That wiring detail is why a licensed electrician is the right choice for this job. A handyman or DIY install may get the outlet powered on, but there is no way to confirm downstream protection without proper testing. A licensed electrician verifies every connection and tests the full circuit after installation.

Collin County enforces Texas electrical codes on all residential wiring work. Unpermitted wiring modifications can surface during a home inspection and delay a real estate closing in McKinney. If your GFCI installation requires new wiring or circuit changes, a permit may be needed. Our electricians handle that paperwork and coordinate with inspectors.

Baker Brothers electricians are state-licensed, insured, and background-checked. We test every GFCI outlet after installation to confirm it trips and resets correctly. You get verified protection across your entire circuit — not just at the outlet itself.

GFCI outlets come in two standard amperage ratings — 15-amp and 20-amp. The rating you install must match the circuit it connects to. A mismatch in either direction creates a problem.

A 20-amp GFCI outlet on a 15-amp circuit is a fire risk. The outlet allows more current to pass through than the wire can safely carry. The wire overheats before the breaker trips. This is one of the most dangerous mistakes in outlet installation.

A 15-amp GFCI on a 20-amp circuit creates the opposite problem. The outlet cannot handle the full current the circuit delivers. It trips repeatedly under normal use, shutting off power to everything plugged in. This is called nuisance tripping, and it usually means the wrong outlet was installed.

Many homes in Tucker Hill and Adriatica have mixed 15-amp and 20-amp circuits running through kitchens and bathrooms. The amperage is not always obvious from the outlet or the wire alone. Our McKinney electricians verify amperage at the breaker panel before installing any GFCI outlet. That panel check takes minutes and prevents both fire risk and nuisance tripping.

You do not need to guess which rating fits your circuit. We match every GFCI to the correct amperage and confirm proper function before we leave.

Every GFCI installation follows the same process whether we are replacing a standard outlet or adding a new one. Here is what happens during your appointment.

• Step 1 — Turn off the circuit. We shut off the breaker that feeds the outlet and confirm the line is dead with a voltage tester. No live wires during any part of the job.

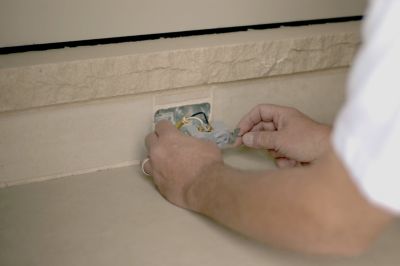

• Step 2 — Remove the existing outlet. We pull the old outlet from the box and inspect the wiring. We check for damage, corrosion, and proper grounding before going further.
• Step 3 — Identify the line and load wires. We determine which wires carry incoming power and which feed downstream outlets. This step is critical for correct GFCI protection across the full circuit.
• Step 4 — Connect the GFCI terminals. We attach the line wires to the line terminals and the load wires to the load terminals. Every connection is tight and secure inside the electrical box.

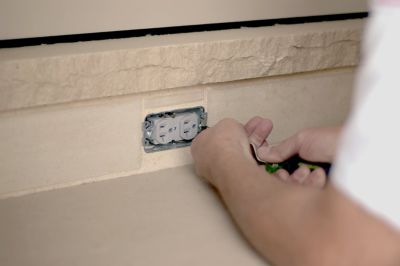

• Step 5 — Mount the outlet and cover plate. We seat the GFCI flush in the box and attach the cover plate. GFCI outlets are deeper than standard outlets, so we confirm the box has enough room for a clean fit.
• Step 6 — Test trip and reset function. We restore power and press the test button on the GFCI. The outlet must trip immediately and reset with a firm click. We also test downstream outlets to confirm they lose power when the GFCI trips.

Older homes near downtown McKinney and the Historic McKinney district may have ungrounded two-wire circuits with no ground wire in the box. The NEC still allows GFCI outlets on these circuits. We install them with a "No Equipment Ground" label on the outlet and every downstream outlet it protects. This gives you ground-fault protection even without a ground wire.

GFCI outlets are more complex than standard outlets. A small wiring error can leave your home unprotected without any visible sign of a problem. These are the mistakes we see most often in McKinney homes.

Reversing the line and load terminals. This is the most common mistake. The GFCI outlet itself may still trip and reset, but every downstream outlet on the circuit loses ground-fault protection. You have no way to know this happened without testing each outlet individually.

Installing the wrong amperage rating. A 20-amp GFCI on a 15-amp circuit allows too much current through the wire. A 15-amp GFCI on a 20-amp circuit trips constantly. Both situations are preventable with a simple panel check before installation.

Skipping the ground connection. If a ground wire is present in the box, it must be connected to the GFCI ground terminal. Leaving it loose or capping it off removes a layer of protection. On ungrounded circuits, the outlet must be labeled correctly per NEC requirements.

Failing to protect downstream outlets. A single GFCI outlet can protect every standard outlet after it on the same circuit. But only if the load terminals are wired. Many DIY installs skip the load connection entirely and only protect the one outlet.

Not testing after installation. Every GFCI must be tested after it is wired. Pressing the test button should kill power to the outlet and every outlet downstream. If it does not, something is wired wrong.

North Texas humidity and summer storms increase ground-fault risk in garages and outdoor areas. A miswired GFCI provides zero protection during the moments it matters most. Our McKinney electricians test every connection and every downstream outlet before the job is complete.

A ceiling fan uses about as much power as a standard light bulb. Running one all day uses very little electricity. Compare that to your air conditioner, which is the largest energy draw in most McKinney homes.

Ceiling fans do not cool the air. They move air across your skin, which makes you feel cooler. That breeze lets you raise your thermostat by a few degrees without losing comfort. A higher thermostat setting means your AC runs less and your electric bill drops.

Blade direction matters by season. In summer, set your fan to spin counterclockwise. This pushes air straight down and creates the cooling breeze. In winter, switch it to clockwise on a low speed. This pulls cool air up and pushes warm air near the ceiling back down along the walls.

Some McKinney homeowners worry that running a fan all day wastes electricity. It does not — as long as someone is in the room. A fan only helps when you feel the breeze. Turn it off in empty rooms to get the most savings.

McKinney summers regularly hit 100°F and above. During peak Oncor billing months, every small reduction in AC runtime adds up. A properly installed ceiling fan in each main room is one of the simplest ways to cut cooling expenses.

GFCI outlets protect you from shock, but certain devices cause them to trip more often than expected. Understanding why helps you avoid repeated power shutoffs and spoiled food.

Refrigerators, chest freezers, and sump pumps draw a small surge of current every time their motors kick on. That surge can trigger a GFCI outlet even when nothing is wrong. The outlet does its job — it detects an imbalance and shuts off. But the result is a freezer full of thawed food or a sump pump that stops running during a storm.

Space heaters and older power tools with worn motors also cause frequent GFCI trips. The motor wear creates tiny current leaks that the GFCI picks up immediately. Replacing the worn device or moving it to a non-GFCI outlet on a different circuit usually stops the tripping.

McKinney garages often power a second refrigerator or chest freezer. During summer heat, a tripped GFCI can spoil a full freezer of food in hours. The solution is a dedicated circuit with GFCI protection for that appliance alone. A dedicated circuit isolates the motor surge so it does not affect other outlets on the same run.

Every GFCI outlet in your home should be tested once a month. Press the test button — the power should cut off immediately. Press reset to restore it. If the outlet does not trip when you press test, or does not reset with a firm click, the GFCI has failed and needs replacement. Our electricians can test and replace any failed GFCI outlets during a single visit.

Texas does not require a license for a simple outlet swap in your own home. However, GFCI installation often involves wiring changes that go beyond a basic replacement. Incorrect GFCI wiring creates shock risk and leaves every downstream outlet on the circuit unprotected.

A licensed electrician is the safest choice for GFCI outlet installation for three reasons:

• Line and load terminals must be wired in the correct order. Reversing them removes ground-fault protection from every outlet downstream on the circuit.
• New circuits or wiring modifications in McKinney may require a permit and inspection through Collin County before the work is covered.
• Every GFCI must be tested after installation to confirm it trips and resets correctly at the outlet and at every downstream connection.

Baker Brothers electricians install and test GFCI outlets across McKinney with same-day scheduling available throughout North Collin County.

A missing or miswired GFCI outlet leaves your home unprotected against electrical shock. Kitchens, bathrooms, garages, and outdoor areas all need working ground-fault protection. The longer these outlets go without an upgrade, the greater the risk to your household.

Baker Brothers brings 80 years of electrical expertise to McKinney. Our electricians are licensed, insured, and background-checked. We verify every connection, test every outlet, and confirm downstream protection before the job is done. Same-day and next-day appointments are available throughout McKinney and North Collin County.
